Experimental design

Matrix system

Recalling a simple matrix system, as seen in the Biothermodynamics chapter:

\[ a_{11}*x_1 + a_{12} * x_2 = b_1 \\ a_{21}*x_1 + a_{22} * x_2 = b_2 \tag{1}\]

That is,

\[ A = \begin{bmatrix} a_{11} & a_{12}\\ a_{21} & a_{22} \end{bmatrix} , \]

\[ x = \begin{bmatrix} b_1\\ b_2 \end{bmatrix} , \]

\[ b = \begin{bmatrix} x_1\\ x_2 \end{bmatrix} \]

Now solve for the values ​​of x (or \(\Delta\)’s) linearly:

\[ A * x = b \tag{2}\]

Using matrix algebra, the Equation 2 is solved for the values ​​of x:

\[ x = A^{-1} * b \tag{3}\]

Thus, the matrix solution, widely used in multivariate situations, such as response surface methodology and factorial experiment, can be obtained by the following Equation 4:

\[ \beta = (X^T \; X)^{-1} \; X^T*y \tag{4}\]

Other examples are illustrated in Equation 5:

\[ y = b_0+b_1*x, \, linear\ fit \\ y = b_0+b_1*x_1+b_2*x_2+...+b_n*x_n, \, multilinear\ fit \\ y = b_0+b_1*x_1+b_2*x_2+...+b_n*x_n, \, linear\ response\ surface\ methodology \\ y = b_0+b_1*x_1+b_2*x_2+b_{12}*x_1*x_2, \, factorial\ design\, 2^2 \\ y = b_0+b_1*x_1+b_2*x_2+b_3*x_3+b_{12}*x_1*x_2+,b_{13}*x_1*x_3+b_{23}*x_2*x_3+b_{123}*x_1*x_2*x3 \, experiment \, factorial \, 2^3 \\ y = b_0+b_1*x_1+b_2*x_2+b_{11}*x_1^2+b_{22}*x_2^2+b_{12}*x_1*x_2, \, quadratic \, response \, surface \, methodology \\ \tag{5}\]

As a rule, all applications listed in Equation 5 can be solved with the help of matrix relations of the equations Equation 4 (linear, multilinear and linear response surface adjustments) or Equation 2 (factorial designs). Two situations of this nature are exemplified below.

Reaction Yield & Factorial Design 2\(^{2}\)

The simplest factorial experiment is the one that evaluates the response of an experiment (yield, for example) in which two factors (temperature and type of catalyst, for example) are varied at two levels each (low and high). The table prepared in the excerpt below from the data provided by Neto et al (Neto, Scarminio, and Bruns 2010) exemplifies this situation.
# Factorial design

# Experiment data
temp <- c(40, 60, 40, 60)
catalis <- c("A", "A", "B", "B")
rendim <- c(59, 90, 54, 68)

# Factorial design table

tab.fat <- data.frame(temp, catalis, rendim)
knitr::kable(tab.fat, caption = "Factorial experiment data (Neto et al., 2010).", "pipe") # table
Factorial experiment data (Neto et al., 2010).
temp catalis rendim
40 A 59
60 A 90
40 B 54
60 B 68
To conduct matrix analysis of the data, it is necessary to convert the table of independent variables (predictors) into a coded design matrix, in which high values ​​(upper level) are represented by +1 and low values ​​(lower level) by -1. In addition, it is also necessary to assign +1 to the 1st. column, and produce a 4th column containing the product of the encoded predictors. For example, for temperature at 40 (-1) and catalyst B (+1), the row will contain the product -1. This final 4x4 matrix is ​​called the contrast coefficient matrix:

\[ X = \begin{bmatrix} 1 & -1 & -1 & 1 \\ -1 & -1 & 1 & 1 \\ -1 & 1 & -1 & 1 \\ 1 & 1 & 1 & 1 \\ \end{bmatrix} \]

In addition, it is necessary to divide the result of the matrix operation by a specific scalar vector. In short: the coded matrix X of the predictors is created, the matrix Y of the response is applied to Equation 2, and the result is divided by a characteristic vector of the factorial design 2\(^{2}\) (c(4,2,2,2)). The code snippet below solves the problem raised:
# Creation of the coded planning matrix
X <- matrix(c(1, -1, -1, 1, 1, 1, -1, -1, 1, -1, 1, -1, 1, 1, 1),
nrow = 4, byrow = TRUE)
# Creation of the yield matrix
Y <- as.matrix(rendim)
# Determination of the beta coefficients:
beta <- t(X) %*% Y / c(4, 2, 2, 2)
beta
       [,1]
[1,]  67.75
[2,]  22.50
[3,] -13.50
[4,]  -8.50
Thus, the result is interpreted as:

\[ \begin{pmatrix} M \\ T \\ C \\ TC \\ \end{pmatrix} = \begin{pmatrix} 67.75 \\ 22.50 \\ -13.50 \\ -8.50 \\ \end{pmatrix} \tag{6}\]

Where M represents the overall mean of the response, T and C the main effects (temperature and catalyst), and TC the interaction effect. In summary, the results suggest that 1) the temperature favored the yield, especially for catalyst A, 2) there is a reduction in yield when replacing catalyst A with B, and c) the highest yields are obtained with catalyst A at the highest temperature. Expressing these results in the multiple linear function:

\[ y=67.75+22.5*T-13.5*C-8.5*T*C \tag{7}\]

Interestingly, we arrive at the same results if, instead of applying Equation 2, we use Equation 4, followed by multiplication (and not division) by another vector (c(1,2,2,2):
beta <- (solve(t(X) %*% X) %*% t(X) %*% Y) * c(1, 2, 2, 2)
beta
       [,1]
[1,]  67.75
[2,]  22.50
[3,] -13.50
[4,]  -8.50

Response Surface Methodology (RSM)

This multivariate statistical technique is also commonly used in modeling responses influenced by more than one factor, sometimes associated with factorial design, and with a view to optimizing a response without the need to evaluate all possible combinations. This can be particularly useful when one wants to optimize a test whose response depends, for example, on scalar predictors, such as the concentration range of a given reagent and the pH conditions.
For example, for a linear response surface (Neto, Scarminio, and Bruns 2010), in a test in which one wishes to verify the best yield (rend, %) of a reaction by varying 3 levels of reagent concentration (conc, %) and three magnetic stirring speeds (agit, rpm), one can, as before, prepare the contrast matrix from the information in the following table:
# Data for response surface methodology

conc <- c(45, 55, 45, 55, 50, 50, 50)
agit <- c(90, 90, 110, 110, 100, 100, 100)
x1 <- c(-1, 1, -1, 1, 0, 0, 0)
x2 <- c(-1, -1, 1, 1, 0, 0, 0)
yield <- c(69, 59, 78, 67, 68, 66, 69)

tab.msr <- data.frame(conc, agit, x1, x2, yield)
knitr::kable(tab.msr, caption = "Experiment data of linear response surface methodology
(Neto et al, 2010).", "pipe") # table
Experiment data of linear response surface methodology (Neto et al, 2010).
conc agit x1 x2 yield
45 90 -1 -1 69
55 90 1 -1 59
45 110 -1 1 78
55 110 1 1 67
50 100 0 0 68
50 100 0 0 66
50 100 0 0 69
# Criação da matriz de coeficientes de contraste
X <- matrix(c(1, 1, 1, 1, 1, 1, 1, -1, 1, -1, 1, 0, 0, 0, -1, -1, 1,
              1, 0, 0, 0), nrow = 7, byrow = FALSE)

# Criação da matriz de rendimento
Y <- as.matrix(rendim)

# Determinação dos coeficientes beta:
beta <- solve(t(X) %*% X) %*% t(X) %*% Y
beta
      [,1]
[1,] 68.00
[2,] -5.25
[3,]  4.25
Thus, the linear function that expresses the response surface will be:

\[ y=68.00-5.25*conc+4.25*agit \tag{8}\]

Quadratic Response Surface

Sometimes the linear model may not fit the experimental design, which can be verified by an Analysis of Variance (ANAVA) of the experiment. In these cases, a quadratic surface methodology can be applied, which can be expressed as seen in Equation 5. In these cases, a construction called star planning is common, which adds an identical one rotated by 45\(^{o}\) to the initial planning, and whose new points are \(\sqrt{2}\) coded units away from the central point. The example below aims to illustrate this methodology.
# Dados para superfície quadrática de resposta

conc <- c(30, 40, 30, 40, 35, 35, 35, 28, 35, 42, 35)
agit <- c(115, 115, 135, 135, 125, 125, 125, 125, 139, 125, 119)
x1 <- c(-1, 1, -1, 1, 0, 0, 0, -sqrt(2), 0, sqrt(2), 0)
x2 <- c(-1, -1, 1, 1, 0, 0, 0, 0, sqrt(2), 0, -sqrt(2))
rendim <- c(86, 85, 78, 84, 90, 88, 89, 81, 80, 86, 87)

tab.msr2 <- data.frame(conc, agit, x1, x2, rendim)
knitr::kable(tab.msr2, caption = "Dados de experimento de metodologia de
             superfície quadrática de resposta (Neto e cols, 2010).", "pipe")
Dados de experimento de metodologia de superfície quadrática de resposta (Neto e cols, 2010).
conc agit x1 x2 rendim
30 115 -1.000000 -1.000000 86
40 115 1.000000 -1.000000 85
30 135 -1.000000 1.000000 78
40 135 1.000000 1.000000 84
35 125 0.000000 0.000000 90
35 125 0.000000 0.000000 88
35 125 0.000000 0.000000 89
28 125 -1.414214 0.000000 81
35 139 0.000000 1.414214 80
42 125 1.414214 0.000000 86
35 119 0.000000 -1.414214 87
# tabela
This time the contrast coefficient matrix expands to six columns as a function of the terms x\(_{1}^{2}\), x\(_{2}^{2}\), and x\(_{1}\)x\(_{2}\), becoming:

\[ \begin{pmatrix} 1 & -1 & -1 & 1 & 1 & 1 \\ 1 & 1 & -1 & 1 & 1 & -1 \\ 1 & -1 & 1 & 1 & 1 & -1 \\ 1 & 1 & 1 & 1 & 1 \\ 1 & 0 & 0 & 0 & 0 & 0 \\ 1 & 0 & 0 & 0 & 0 & 0 \\ 1 & -\sqrt(2) & 0 & 2 & 0 & 0 \\ 1 & 0 & \sqrt(2) & 0 & 2 & 0 \\ 1 & \sqrt(2) & 0 & 2 & 0 & 0 \\ 1 & 0 & -\sqrt(2) & 0 & 2 & 0 \\ \end{pmatrix} \]{#eq-msr2)

The procedure for the quadratic surface repeats the matrix operation performed with the linear one:
# Creating the matrix of contrast coefficients for the quadratic surface
X <- matrix(c(rep(1, 11), -1, 1, -1, 1, 0, 0, 0, -sqrt(2),
0, sqrt(2), 0, -1, -1, 1, 1, 0, 0, 0, 0, sqrt(2),
0, -sqrt(2), 1, 1, 1, 0, 0, 0, 2, 0, 2, 0, 1, 1,
1, 1, 0, 0, 0, 0, 2, 0, 1, 1,
1, 1, 0, 0, 0, 0, 2, 0, 2, 1, -1, -1, 1, 0, 0, 0, 0,
0, 0, 0), nrow = 11, byrow = FALSE)

# Creating the yield matrix
Y <- as.matrix(rendim)
# Determining the beta coefficients:
beta <- solve(t(X) %*% X) %*% t(X) %*% Y
beta
          [,1]
[1,] 89.505503
[2,] -1.936109
[3,] -4.129153
[4,] -3.253803
[5,] -5.832328
[6,]  1.992845
[7,]  2.169559
The result expresses the quadratic function of the surface found, as follows:

\[ y=89.00+1.51*x_1-2.36*x_2-2.81*x_1^2-2.81*x_2^2+1.75*x_1*x_2 \tag{9}\]

From the result above it is possible to predict the optimized conditions for the test. In this sense, R allows, for example, the construction of a three-dimensional graph that represents the function obtained, and without the need for an additional package: as follows:
## Quadratic response surface (MSR)

x <- seq(-1, 1, 0.1) # predictor x
y <- seq(-1, 1, 0.1) # predictor y
mrs <- function(x, y) {
89.00 + 1.51 * x - 2.36 * y - 2.81 * x^2 - 2.81 * y^2 + 1.75 * x * y
} # function applied to predictors
z <- outer(x, y, mrs) # 3D plot output (response)
res <- persp(x, y, z, xlab = "x1", ylab = "x2", zlab = "z",
shade = 0.4, theta = 30, phi = 15, ticktype = "detailed")
# surface plot of function z(x,y)
points <- trans3d(x1, x2, rendim, pmat = res) # command for adding experimental points
points(points, pch = 19, col = 1) # adding points

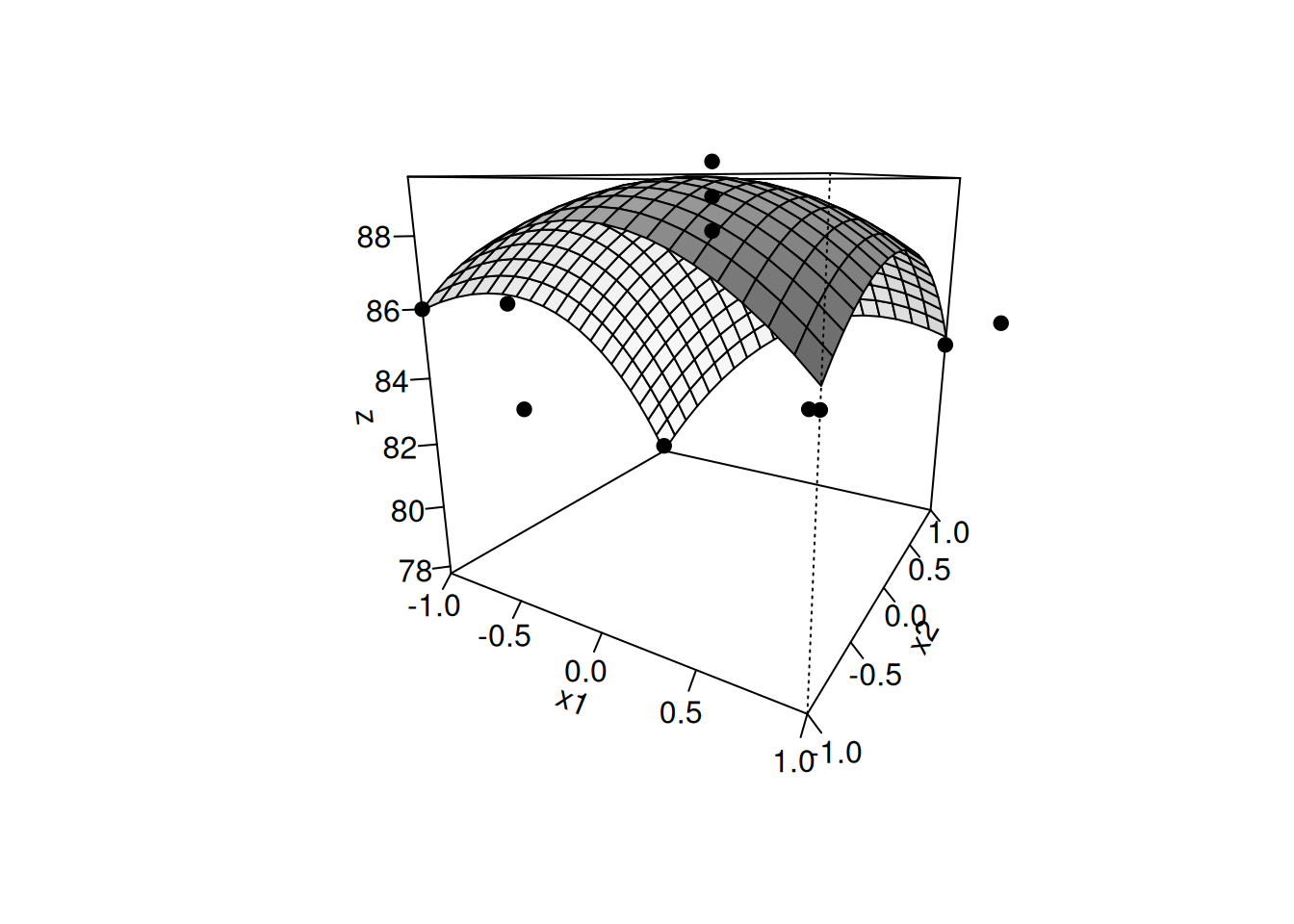

Quadratic surface described by the MSR equation with superposition of experimental values.
However, there are some packages for R for three-dimensional representation of data and functions (rgl, plot3D, scatterplot3d), as well as for factorial design analysis (agricolae, afex, FMC), and response surface methodology (rsm).
